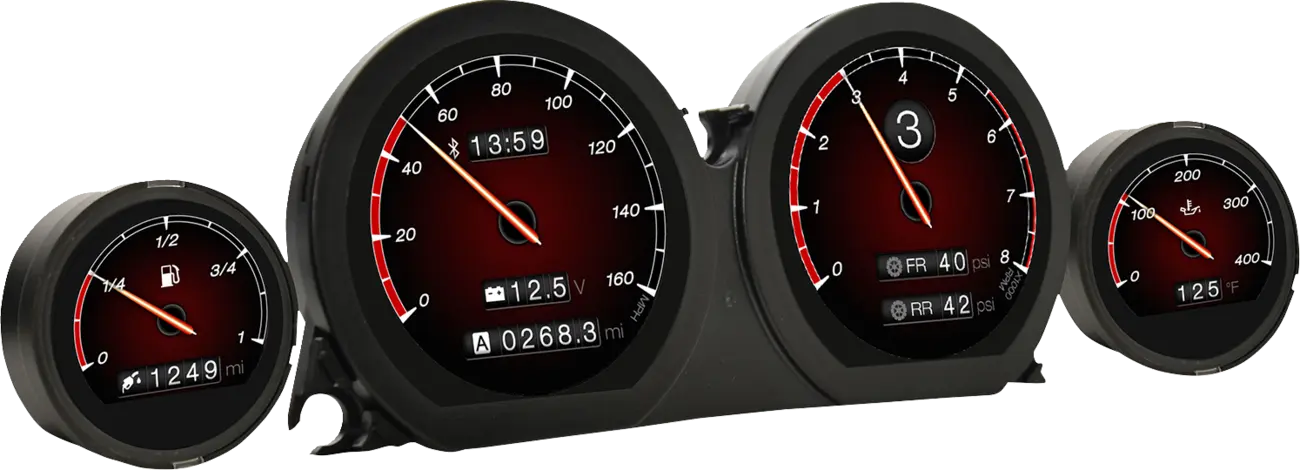

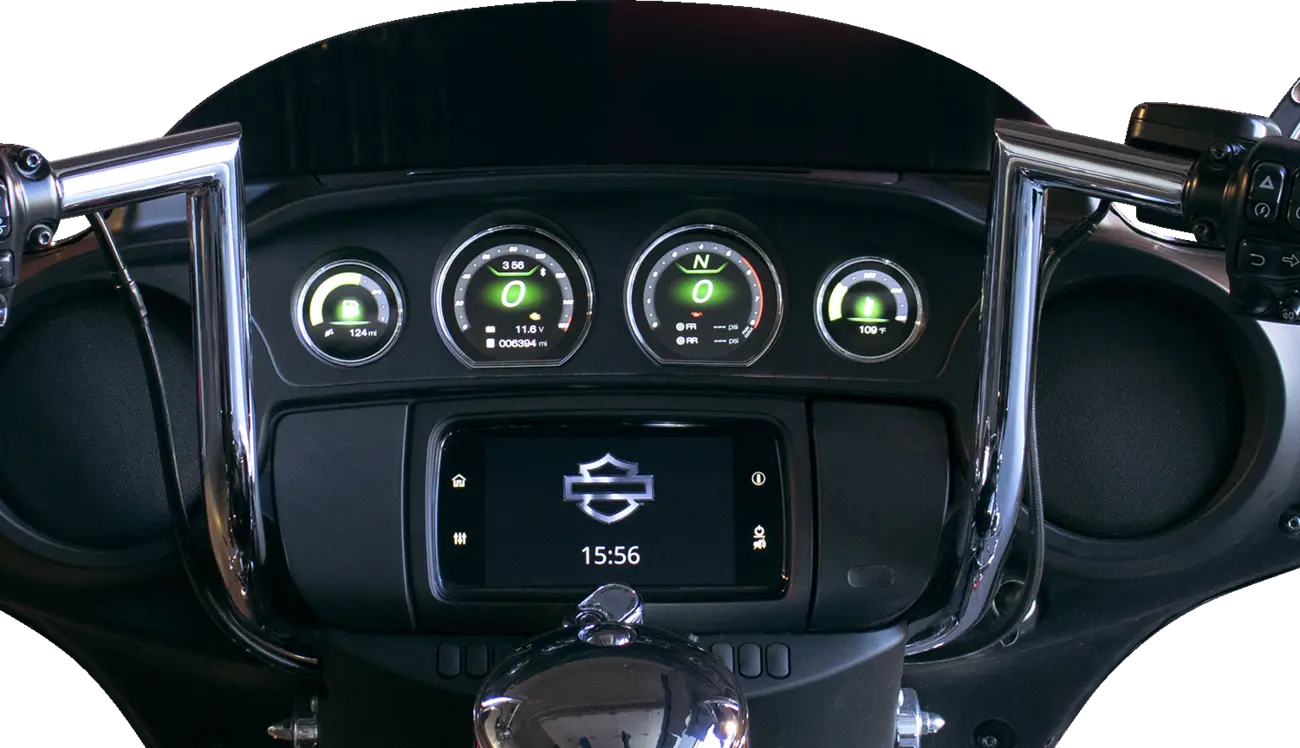

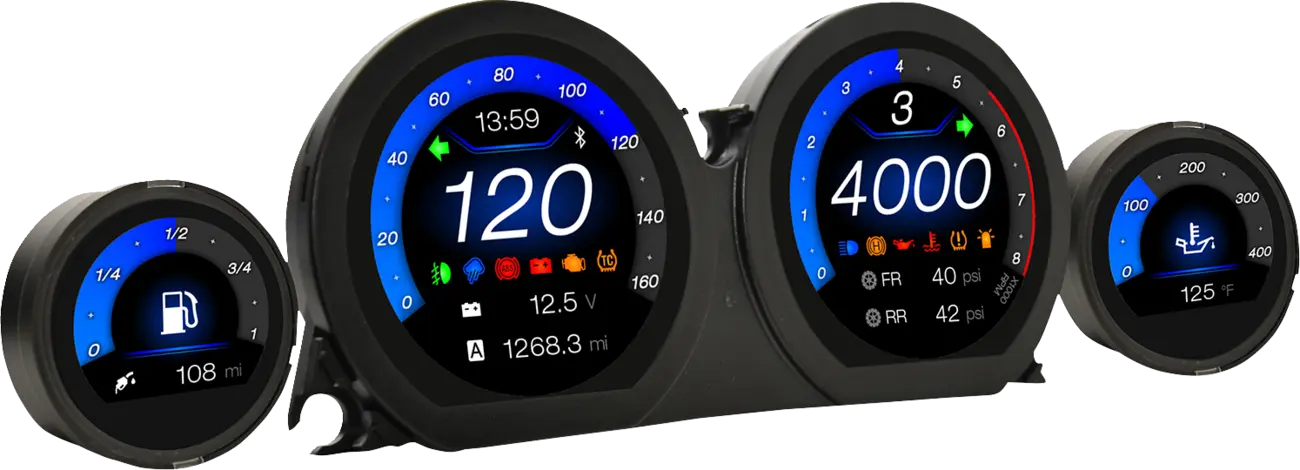

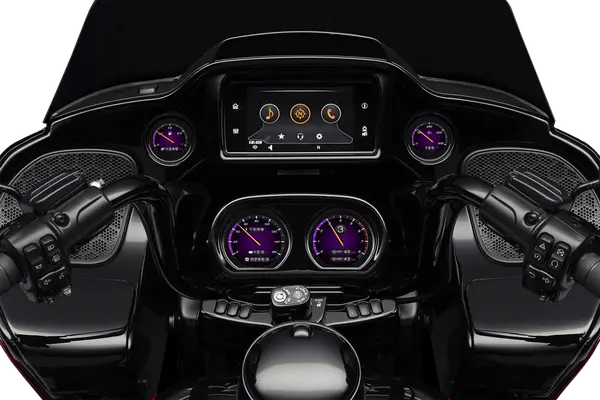

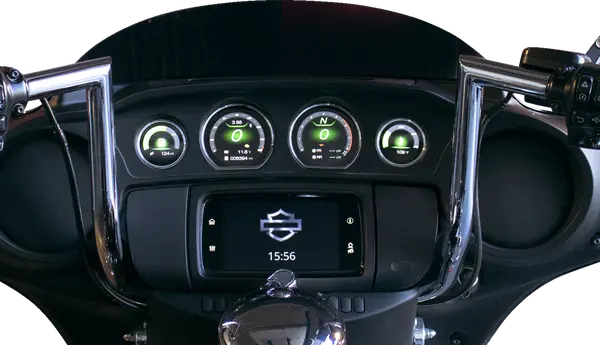

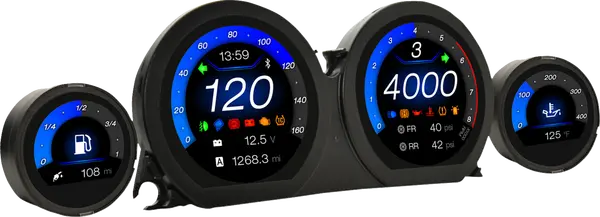

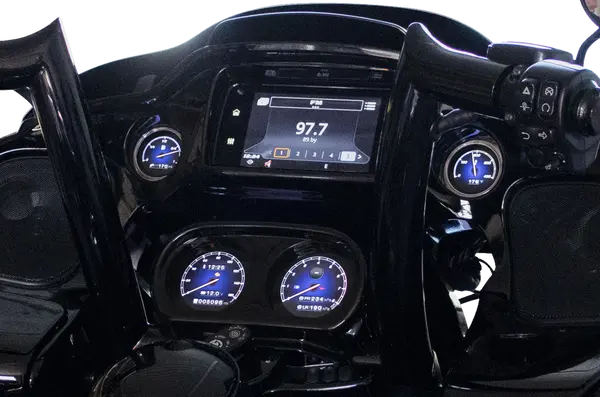

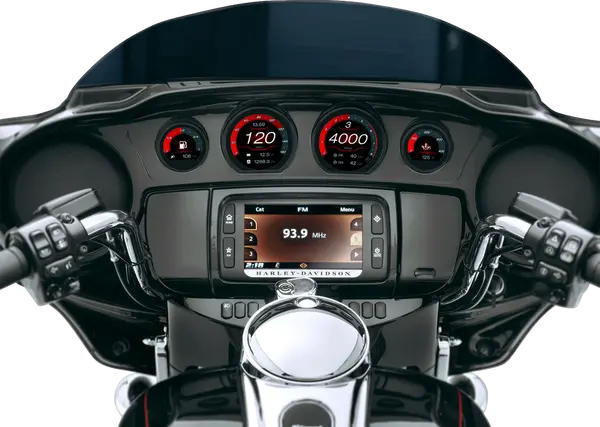

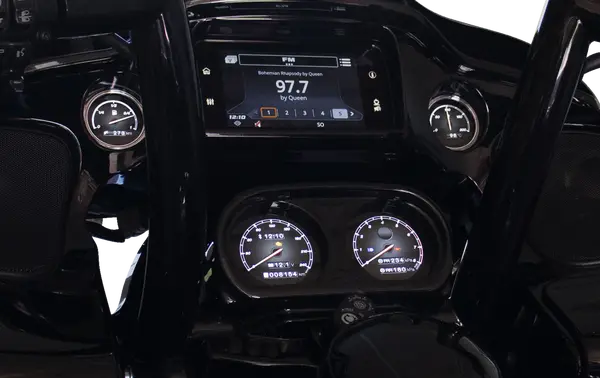

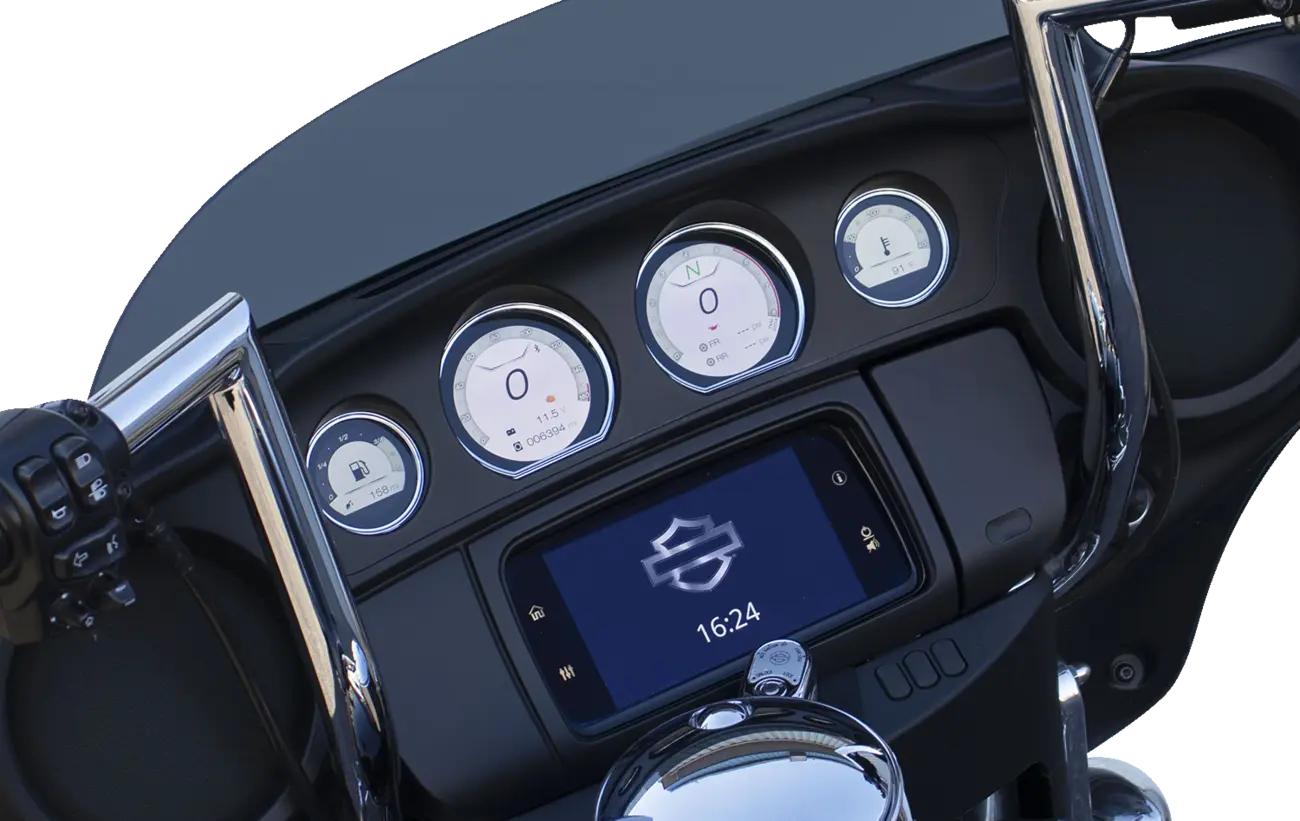

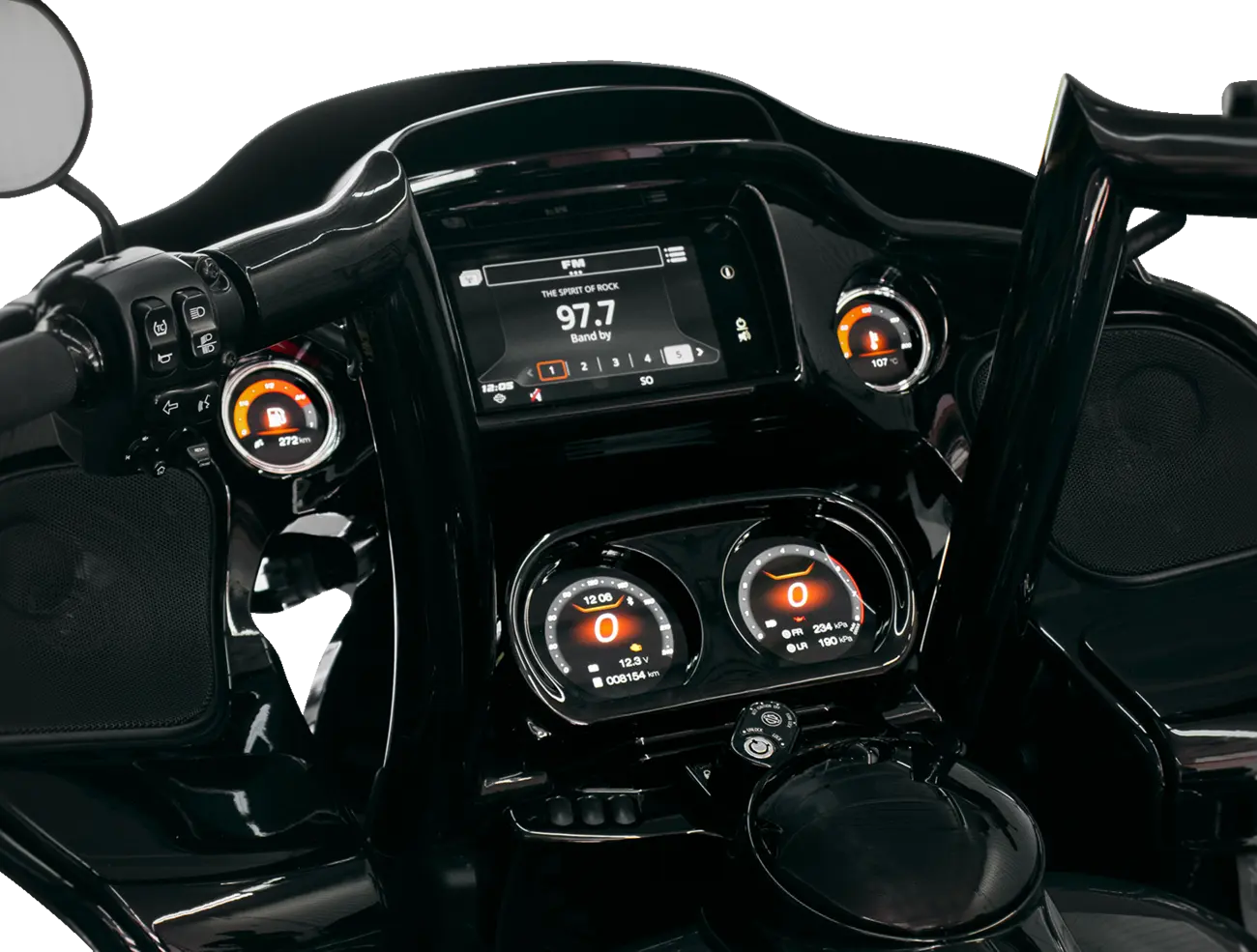

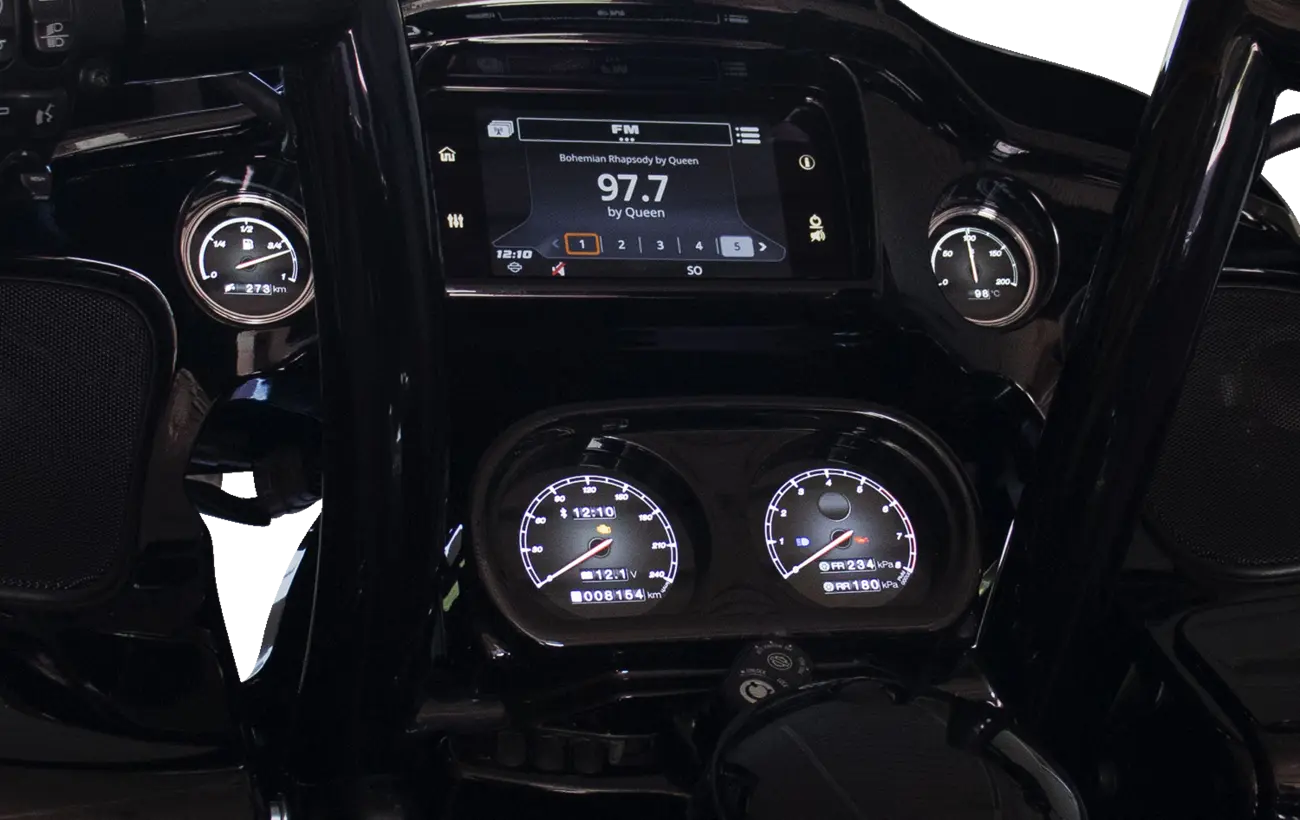

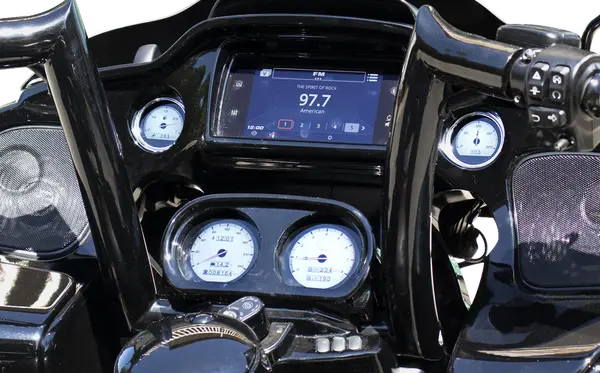

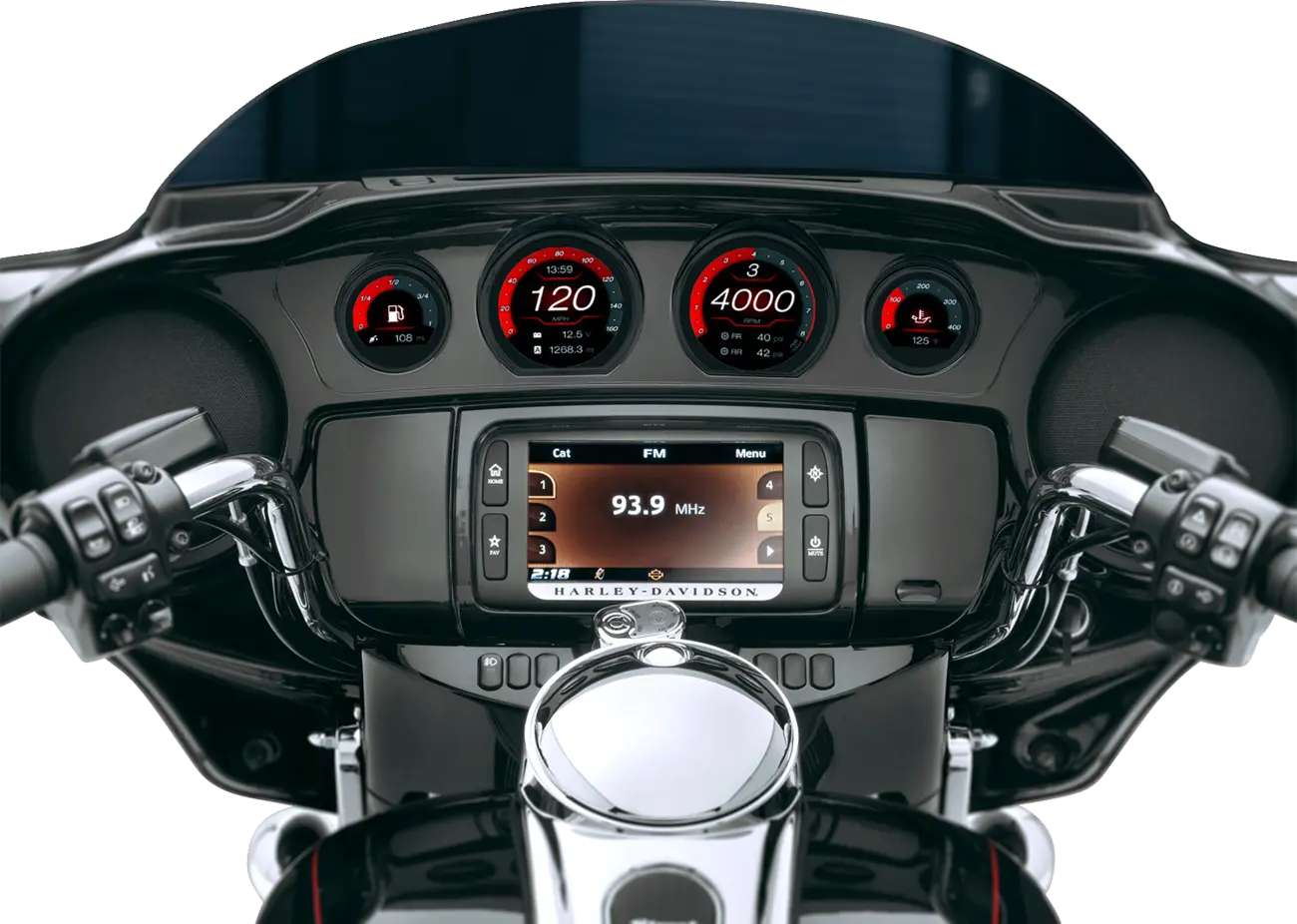

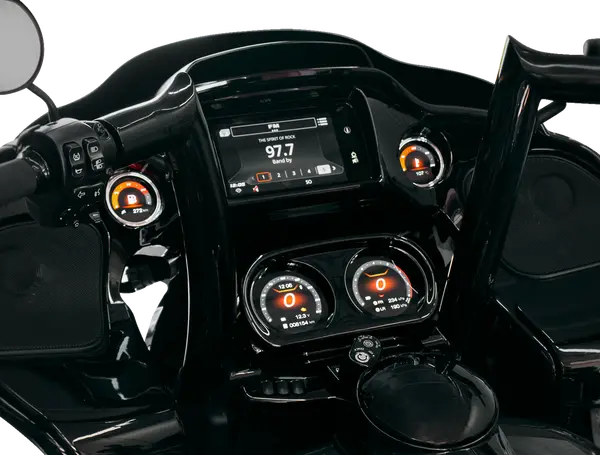

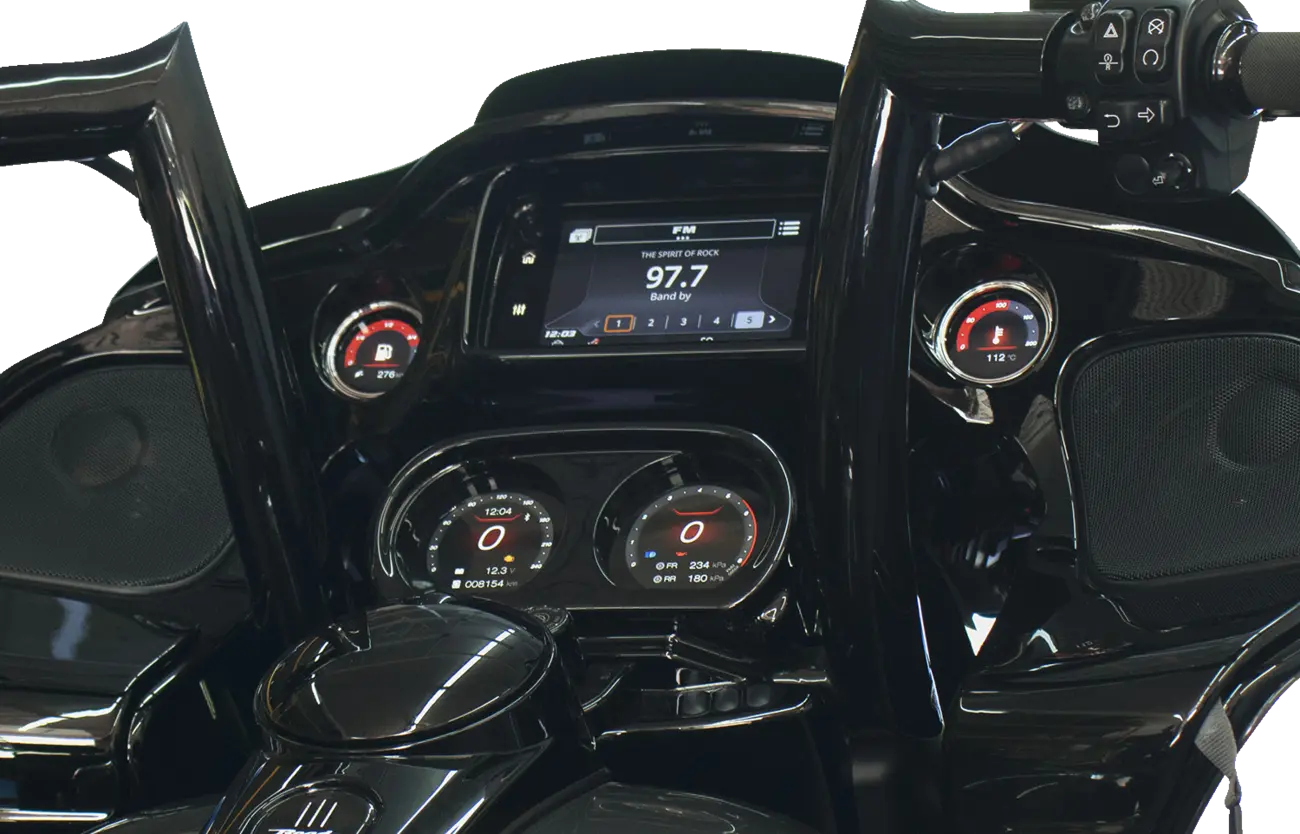

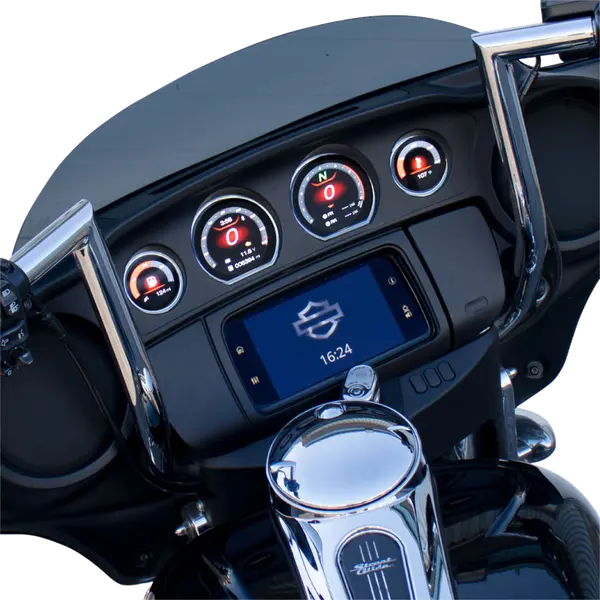

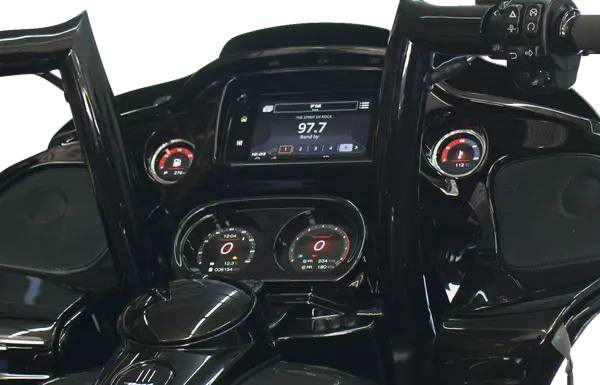

HD-03X | TFT Gauge Set

KOSO NORTH AMERICA
Image: Product/Part name Front
Image: Product/Part name Front
Image: Product/Part name Front
Image: Product/Part name Front
Image: Product/Part name Front
Image: Product/Part name
Image: Product/Part name Front
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name
Image: Product/Part name Front
Image: Product/Part name
Image: Product/Part name Front
Image: Product/Part name Front
Twitter, Facebook, Instagram or similar. If you load this content, personal data will be transferred to this platform and possibly other third parties.

You can find more information in our Privacy & Cookie Policy.

Image: Product/Part name Front Image: Product/Part name Front Image: Product/Part name Front Image: Product/Part name Front Image: Product/Part name Front Image: Product/Part name Image: Product/Part name Front Image: Product/Part name Image: Product/Part name Image: Product/Part name Image: Product/Part name Image: Product/Part name Image: Product/Part name Image: Product/Part name Image: Product/Part name Front Image: Product/Part name Image: Product/Part name Front Image: Product/Part name Front
  • Plug and play
  • Color customization with daytime and nighttime modes
  • Features a smartphone integration that gives full control of dashboard directly from the device
  • Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
  • Can see vehicle’s location on the app and never have to search for it again in crowded places

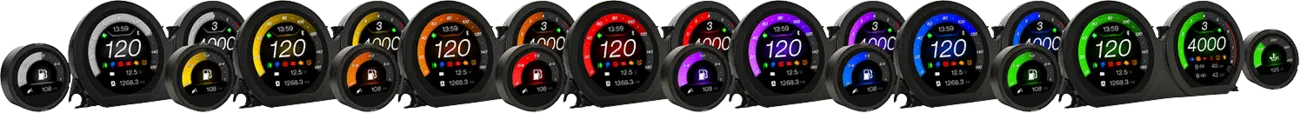

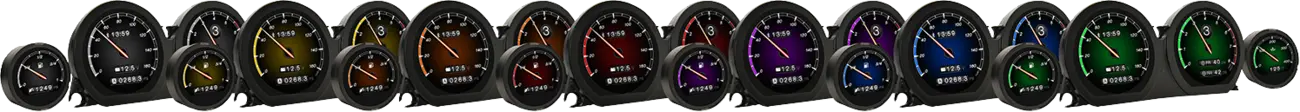

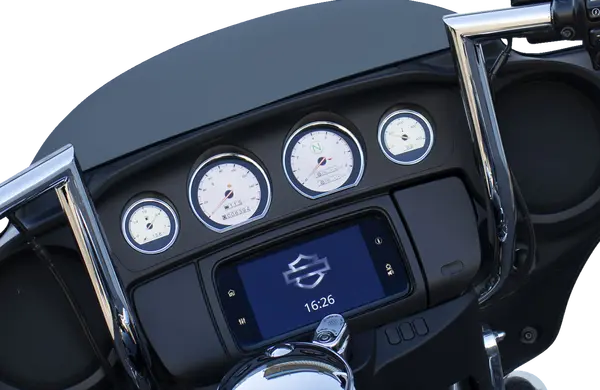

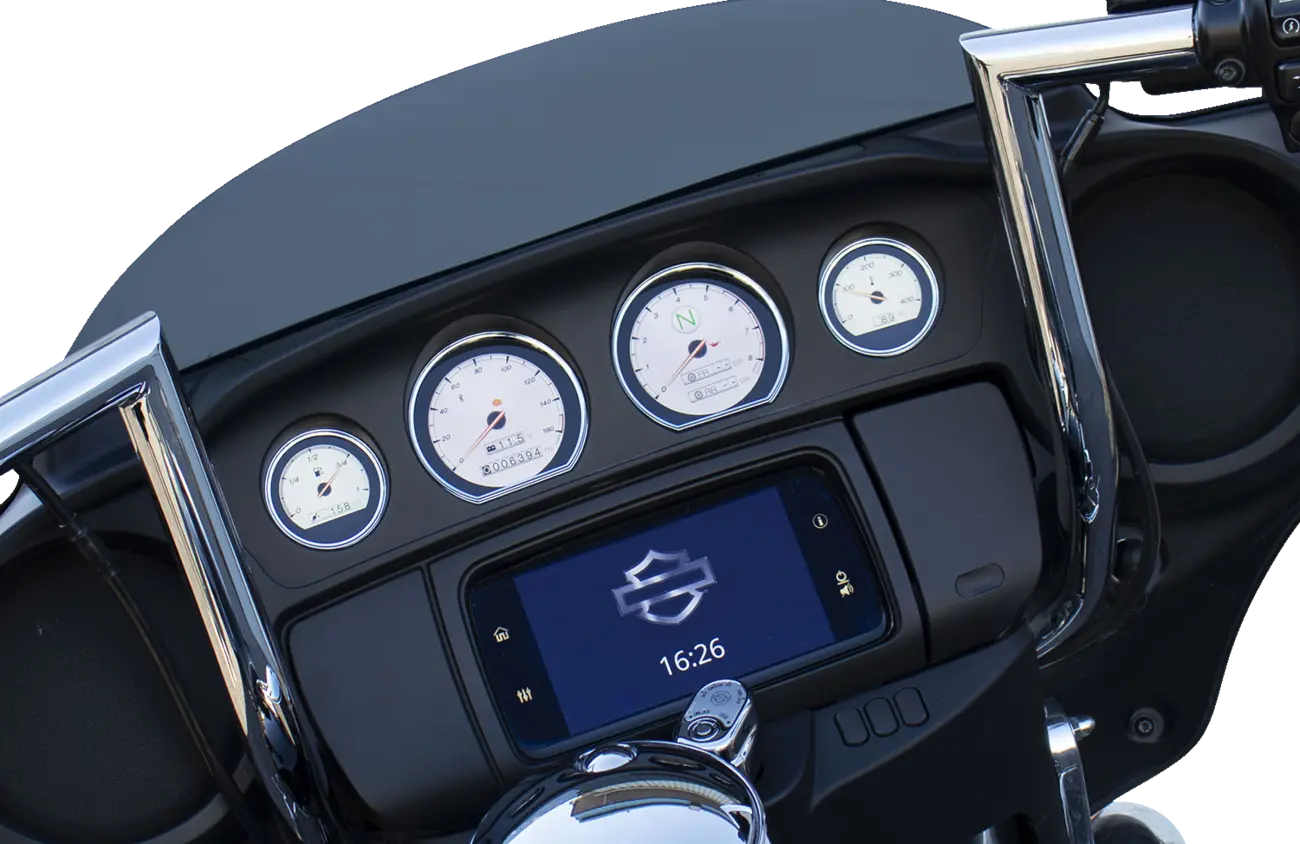

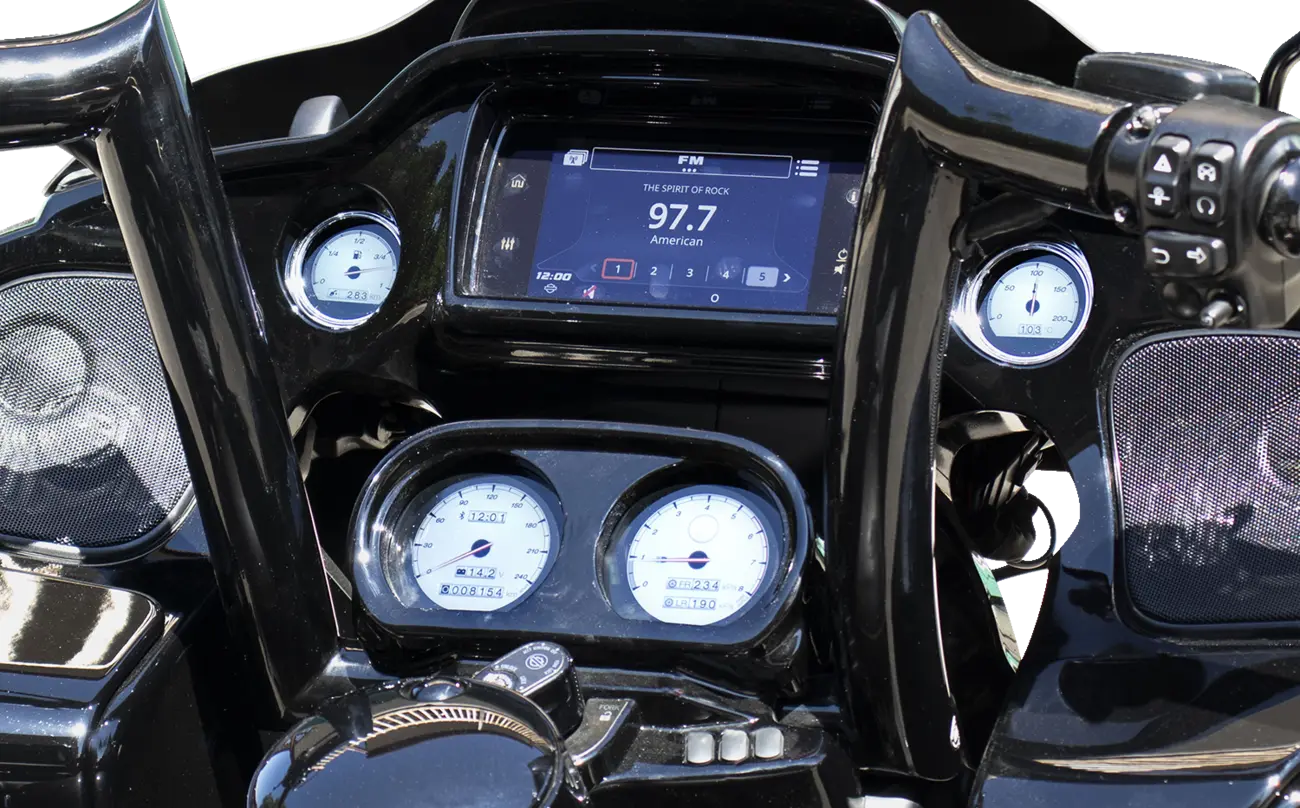

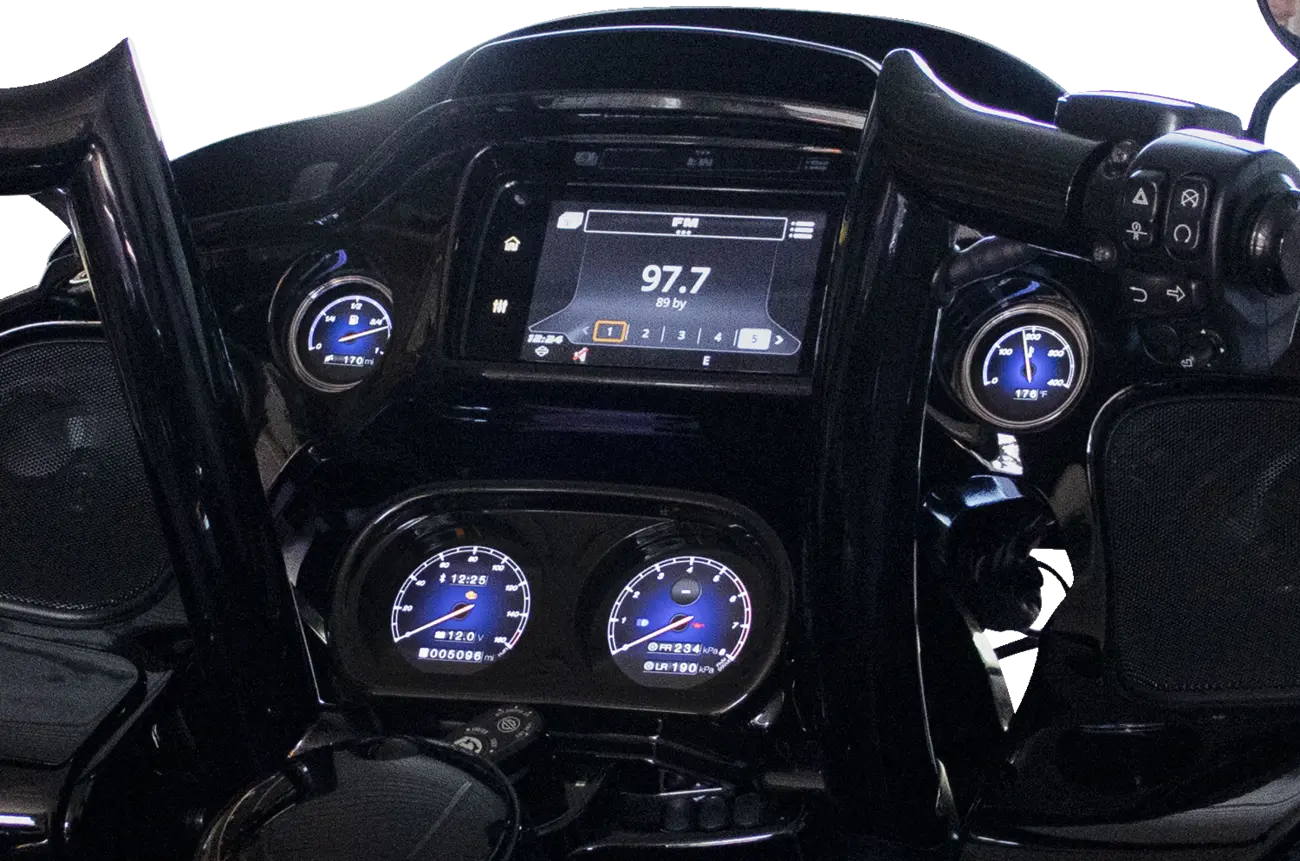

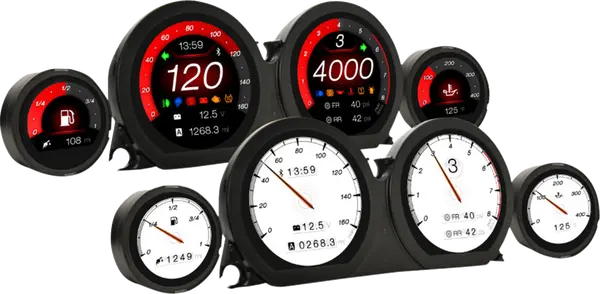

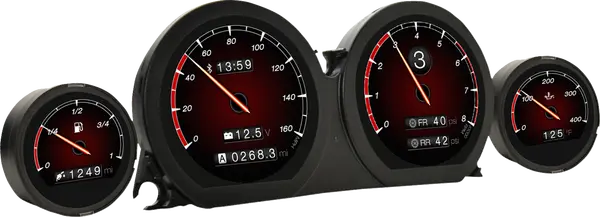

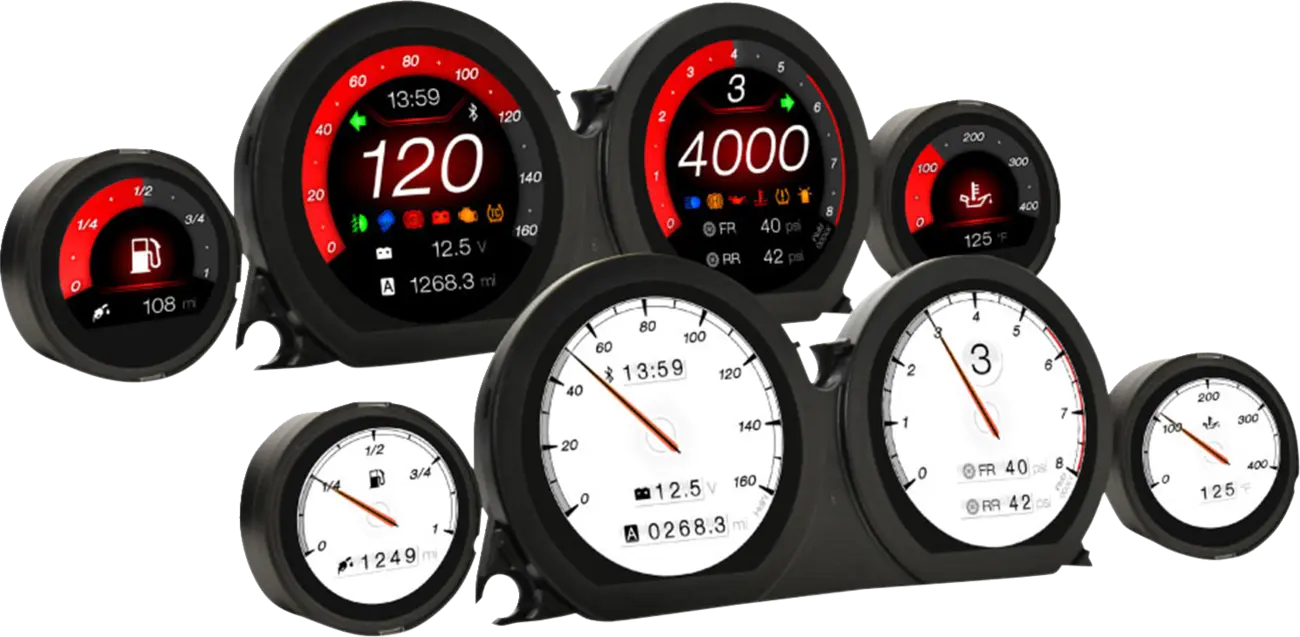

  • Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
  • K Link app also allows to check system health and maintenance with its diagnostics feature
  • Optional air pressure sensor for models equipped with air suspension is available separately
  • Specifications:
  • Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
  • Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
  • Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
  • Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
  • Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
  • To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.
  • Optional air pressure sensor kit sold separately (part # 2212-0901).
Brand
KOSO NORTH AMERICA
Vendor Part Number
BA064930
Depth
51 mm (2"), 44,45 mm (1-3/4")
Housing Color
Black
Length
70 mm (2-3/4"), 27 cm (10-5/8")
Model
HD-03X
Product Name
Gauge
Style
Electronic
Type
Multi-Function
Units
Kit
Width
95 mm (3-3/4"), 70 mm (2-3/4")

KOSO NORTH AMERICA

GAUGES TFT METERS 14-23 HD

22100702 / BA064930

1.198,25EUR*
*incl. 19% VAT
15+ In Stock
Add to Wish List
